Wako Automation, Sales Agent For REGENHU 3D Bioprinters:

REGENHU provides cutting-edge bioprinting solutions to enable your scientific & clinical ambitions. REGENHU 3D bioprinters are used for experimentation in tissue engineering, personalized medicine, regenerative medicine as well as basic drug discovery research.

REGENHU’s 3D bioprinting platforms are known worldwide for their industry leading flexibility and precision. Customers utilize REGENHU 3D bioprinters to print bone, muscle, tendon, skin, kidney, liver and lung tissue.

Technology convergence
The combination of extrusion (inkjet, pneumatic, piston-driven, thermoplastic dispensing) and electrospinning writing (melt or solution) provides unprecedented control at the micro-nano scale.

R-GEN 100 BIOPRINTER

THE TABLETOP 3D BIOPRINTER: BRINGING THE FUTURE OF MEDICINE CLOSER

INDEPENDENT TEMPERATURE CONTROL

Independent temperature management of each material cartridge, extrusion nozzle temperature and workzone ensures you maintain optimal print conditions.

ELECTRO-SPINNING AND WRITING

All R-GEN instruments are built with the ability to be easily upgraded with electro-spinning and writing technology to allow the creation of micro- and nano-fibers.

EXCHANGEABLE WORKZONES

The instrument modularity gives you the possibility to easily and quickly change your instrument base plate according to your needs.

Select amongst four different workzones to manage temperature in the physiological range or above, to generate micro- and nano-fibers, or to simply print in specific labware.

COMPREHENSIVE INSTRUMENT CONTROL

ADJUST PARAMETERS IN REAL TIME

Adjust and refine print parameters any time during the print process.

MONITOR PROTOCOL ACTIONS

Visualize the protocol sequence and action status with the progress tracker.

REDUCE PROTOCOL DEVELOPMENT TIME

Run trial print protocols using rough print parameters, close-up observation and real-time parameter adjustments to quickly identify optimum protocol conditions.

Product Name R-GEN 100
Description Tabletop configurable 3D bioprinter with process interaction and technology convergence.
Base Instruments A tabletop bioprinter, accommodating up to five printing tools with individual temperature control capability, vacuum sample mounting system, four different printing workzones with temperature control options, needle and substrate calibration systems, a process supervision system, and light curing for in-process material crosslinking.
Workzone All print tools able to reach full extent of printing workzone.

Max build zone: 130 x 90 x 65 mm

Control Software Live process interaction with R-GEN CONTROLLER (e.g. parameter changing, process interruption).
Installation data Footprint: 770 x 720 x 760 mm
Weight: 160 kg
Pneumatic: 8 Bar – Air quality : ISO 8573-1:2010 [1:4:1]
Network Fuse: 100-240VAC/4.46-8.52A
Frequency: 50-60 Hz

INSTRUMENT COMPATIBILITY

Ready-to-use tools Compatible with Pneumatic Strand Dispenser, Pneumatic Drop Dispenser, Pneumatic Melt Dispenser and Volumetric Strand Dispenser.
Workzones Compatible with Standard Workzone Kit, Physiological Temp Kit, High Temperature Kits and Electrospinning and Writing Kit.
Options Compatible with Light Curing Kit and Process Supervision System.
Design Software Compatible with SHAPER planning software for 2D/3D design and bioprinting process and protocol management.
Third-party products Compatible with Liquid Temperature Control Unit for cartridges and workzone temperature control.

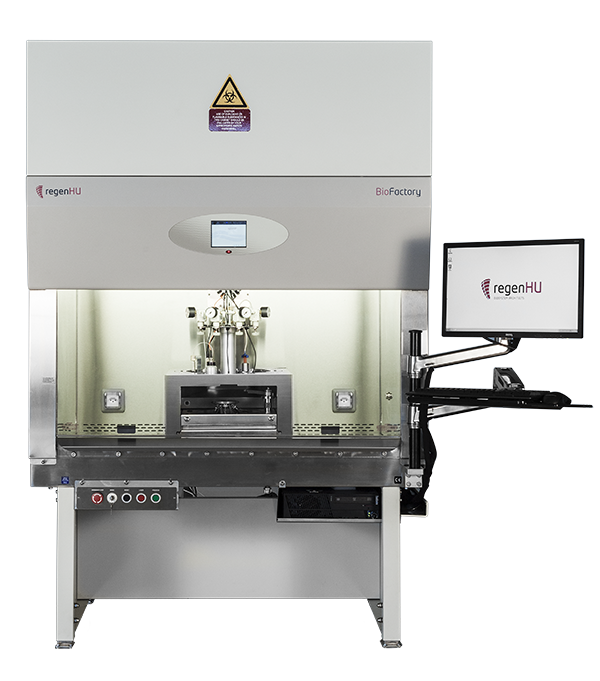

R-GEN 200 BIOPRINTER

THE 3D BIOPRINTING STATION IN A BIOSAFETY ENCLOSURE: BRINGING THE FUTURE OF TISSUE ENGINEERING AND REGENERATIVE MEDICINE CLOSER BY REVOLUTIONIZING MEDICINE TODAY.

Each R-GEN bioprinters is personally configured to specifically meet the needs of our users’ bespoke research goals.

Combine jetting, contact dispensing and electrowriting technologies with a full range of auxiliary process options to build simple or complex cell-laden constructs.

REGENHU scientific advisors are available to guide you to the most suitable and optimal instrument.

INDEPENDENT TEMPERATURE CONTROL

Independent temperature management of each material cartridge, extrusion nozzle temperature and workzone ensures you keep the optimal print conditions.

ELECTRO-SPINNING AND WRITING

All R-GEN instruments are built with the ability to be easily upgraded with electro-spinning and writing technology to allow the creation of micro- and nano-fibers.

EXCHANGEABLE WORKZONES

The instrument modularity gives you the option to easily and quickly change your instrument base plate according to your needs. Select amongst four different workzones to manage temperature in the physiological range or above, to generate micro- and nano-fiber, or to simply print in specific labware.

ADJUST PARAMETER IN REAL TIME

Adjust and refine print parameters any time during the print process.

MONITOR PROTOCOL ACTIONS

Visualize the protocol sequence and action status with the progress tracker.

REDUCE PROTOCOL DEVELOPMENT TIME

Run trial print protocols using rough print parameters, close-up observation and real-time parameter adjustments to quickly identify optimum protocol conditions.

Product Name R-GEN 200
Description Biosafe configurable 3D bioprinting station with process interaction and technology convergence.
Instrument base A biosafety-enclosed 3D bioprinter, accommodating up to five printing tools with individual temperature control capability, vacuum sample mounting system, four different printing workzones with temperature control options, needle and substrate calibration systems, process supervision system and light curing for in-process material crosslinking.
Workzone All print tools able to reach full extent of printing workzone.

Max build zone: 130 x 90 x 65 mm

Control Software Live process interaction with R-GEN CONTROLLER (e.g. parameter changing, process interruption).
Safety Class II Biosafety Enclosure (Type A2) – NSF/ANSI 49

Built-in anti-vibration systems and user safety

Ultraviolet germicidal lamp

Configurable work bench height

Casters

Configurable mechanical fixation of display panel (left or right side)

CE conformity

Installation data Footprint: 1366 x 963 x 2202 mm
Weight: ca 600 kg
Pneumatic: 8 Bar – Air quality : ISO 8573-1:2010 [1:4:1]
Network Fuse: 100-240VAC/4.46-8.52A
Frequency: 50-60 Hz

INSTRUMENT COMPATIBILITY

Ready-to-use tools Compatible with Pneumatic Strand Dispenser, Pneumatic Drop Dispenser, Pneumatic Melt Dispenser and Volumetric Strand Dispenser.
Workzones Compatible with Standard Workzone Kit, Physiological Temperature Kit, High Temperature Kits and Electrospinning and Writing Kit.
Options Compatible with Light Curing Kit and Process Supervision System.
Design Software Compatible with SHAPER planning software for 2D/3D design and bioprinting process and protocol management.
Third-party products Compatible with Liquid Temperature Control Unit for cartridges and workzone temperature control.

Shaper

ADVANCED, YET SIMPLE, DESIGN AND BIOPRINTING MANAGEMENT SOFTWARE

SIMPLIFY YOUR PROTOCOL DEFINITION AND EXPERIMENT DESIGN DEVELOPMENT

INTUITIVE AND EASY-TO-USE SOFTWARE

User-friendly and intuitive software which designs and combines 2D and 3D constructs and defines your printing protocol, converging various printing technologies and biomaterials.

COMPREHENSIVE PRINTING PLANNING

Benefit from complete and easy control of your printing process, from the design of your constructs to the definition of your printing sequence.​

TIME SAVING

Drastically reduce the learning curve and design time thanks to biodesign features, such as automatic in-fill of complex structure, reuse of existing models and multi-object management on labware.

DEFINE AND MANAGE YOUR PROCESS IN THREE STEPS

STAGE 1 DESIGNER

EASY COMPLEX STRUCTURE DESIGN

Use SHAPER to easily design your 2D and 3D constructs or import them from another source in a simple manner.​

Define and select various printing technologies and biomaterials and set your printing parameters in a single view.​

STAGE 2 COMPOSER

MULTI-OBJECT PRINT DEFINITION

Define multi-object print jobs by simply positioning and combining your different 2D and 3D constructs within specific labware.

STAGE 3 SEQUENCER

OPTIMIZED PRINTING PROCESS

Quickly visualize and specify the sequence of your print project by defining order, time, frequency and parameters of each process action.​

SPECIFICATIONS

Product Name SHAPER
Version 1.0
Description PLANNING SOFTWARE FOR 2D/3D DESIGN AND BIOPRINTING PROCESS AND PROTOCOL MANAGEMENT.
License 3, 5 or 10 licenses including updates, bug-fixes and Help Hotline access.
Dongle-based license (USB) allowing remote and on-site design work.
Compatibility R-GEN 100 and R-GEN 200 Series bioprinting instruments.

HARDWARE & OS REQUIREMENTS

Operating Systems Windows 10 64-bit
System RAM 8 GB (minimum), 16 GB (recommended)
Hard Disk Storage 512 Gb SSD (recommended)
CPU Minimum: Intel Core i7-4500U, 64-bit, 1.80 GHz (3.00 GHz Turbo), 4 MB cache, 2 cores, 4 threads.

Recommended: Intel Core i7-9850H, 64-bit, 2.60 GHz (4.60 GHz Turbo), 12 MB cache, 6 cores, 12 threads.

Supported 2D/3D files format *.STL
Additional HW 1 free USB port available, mouse and keyboard.
